How to use and install: Kiwitech Temporary

Electric Fencing End Assembly Posts

Key Facts

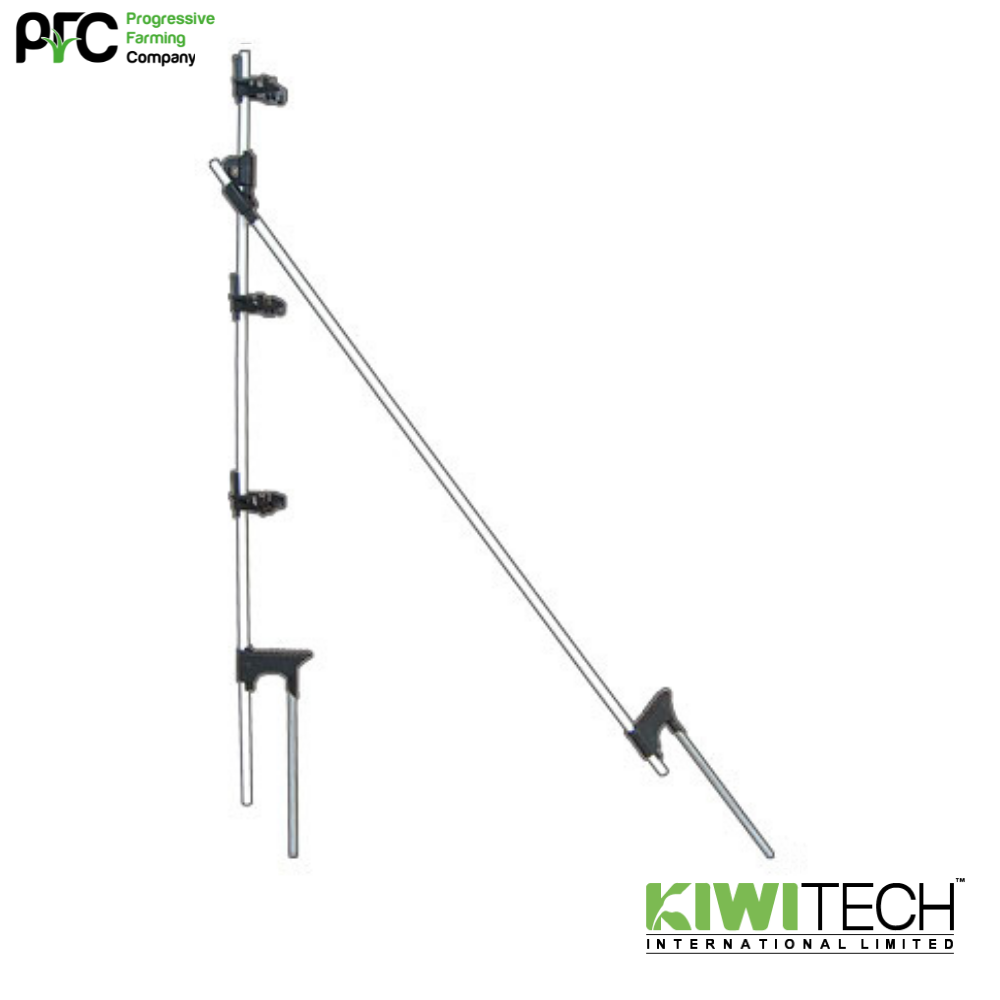

  • The Kiwitech End Assembly Post uses an Anchor and Stay post arrangement and designed to be the start and end posts in a Kiwitech temporary electric fence

  • It is available in 1, 2 and 3 wire assembly kits

  • It is capable to supporting a 400m 3 Wire fee standing Kiwitech temp fence

  • The End Assemblies are designed to fit in the Kiwitech Rack and used with the Kiwitech PACs for simple, fast fencing.

  • The End Assembly posts are comprised of:

    • 2 x 9mm Kiwitech UV coated Fibreglass post (1000mm)

    • 2 x Kiwitech long pedal

    • Nylon Wedge Clip (to connect the posts).

    • Release hooks (1 = 1 wire, 2 = 2 wire, 3 = 2 wire)

    • 9mm single wedges (these attach the pedal, clip and release hook to the post).

Corner Post Assembly

  • The corner post is assembled in the same way as the End Assembly.

  • Nylon Wedge clips replace the release hooks.

Installation Instructions
